Chapter 14 Textbook Assignment

Purpose: To create scripts that use scalar variables, table variables, temporary tables, IF statements, WHILE statements, TRY...CATCH statements and to create executable queries

To see a video demo on task #1(scenarios 1-3), view: https://youtu.be/vOPDLzzBbSw

To see a video demo on task #1(scenario 4), view: https://youtu.be/gvxhJ_kFIUc

To see a video demo on task #2 (all scenarios), view: https://youtu.be/AWSyAqU3aWQ

To see a video demo on task #3 (all scenarios), view: https://youtu.be/69XHzLljKY4

To see a video demo on task #4 (all scenarios), view: https://youtu.be/ThSK1DvzQxQ

Task #1: Creating scripts with variables

Scenario: 1. Our boss would like us to create a table variable that stores our Vendors who spend the most money. They would like to see the VendorID and VendorName of vendors who have more than 5,000 for their invoice totals.

1. Launch SSMS, create a new query and enter the comment /* Task 1 */

2. We will need to use the AP database, the Vendors table and the Invoices table. We will start with the select statement we want to use:

USE AP;
SELECT VendorID, VendorName
FROM Vendors
WHERE VendorID IN(SELECT VendorID FROM Invoices WHERE InvoiceTotal > 5000);

3. Our next step is to create a table variable that stores the data. We will need to declare the table variable with the column names and data types

DECLARE @BigVendors table (VendorID int, VendorName varchar(50));

4. That statement should go below USE AP;

5. Next we want the output from the select to go into the @BigVendors variable instead of displaying it to the screen. We need to modify the select statement a little by adding INSERT @BigVendors before it

INSERT @BigVendors SELECT VendorID, VendorName
FROM Vendors
WHERE VendorID IN(SELECT VendorID FROM Invoices WHERE InvoiceTotal > 5000);

6. At this point, we have a variable called @BigVendors that is storing the 4 rows of data retrieved from the subquery. To see the data in the table varible, you need to add a separate select statement tbelow the one that created the table variable and you need to run the commands together

SELECT * FROM @BigVendors;

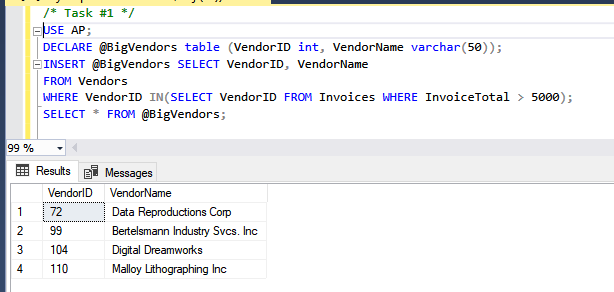

The entire script and output are shown below:

table variables

7. Save the script as chapter14-textbook-assignment.sql

8. Comment out the code.

Scenario 2: Our boss would like us to print out the maximum invoice amount, minimum invoice amount and the number of invoices for a given VendorID using data in the AP database, Invoice table

1. The request requires creating 4 variables: MaxInvoice, MinInvoice, InvoiceCount, VendorIDVar

2. To declare the variables, we need to know the data types we are dealing with. InvoiceTotal has a data type of money. We will use that for MaxInvoice and MinInvoice For VendorIDVar we will use int because VendorID uses an int data type For InvoiceCount we are going to use the COUNT function, so we will use the int data type.

We need to enter the variable declaration statements shown below:

USE AP;
DECLARE @MaxInvoice money, @MinInvoice money;
DECLARE @InvoiceCount int, @VendorIDVar int;

3. Our next step is to set the VendorIDVar equal to the vendorID we want to look up

SET @VendorIDVar = 95;

4. After that, we will place the result of aggregate queries into the invoice variables:

SELECT @MinInvoice = MIN(InvoiceTotal), @MaxInvoice =MAX(InvoiceTotal), @InvoiceCount = COUNT(*)
FROM Invoices WHERE VendorID = @VendorIDVar;

5. To view the data in the variables, we need to use print statements.

PRINT 'Number of invoices: ' + CONVERT(varchar,@InvoiceCount) + '.';
PRINT 'Maximum invoice is $' + CONVERT(varchar,@MaxInvoice,1) + '.';
PRINT 'Minimum invoice is $' + CONVERT(varchar,@MinInvoice,1) + '.';

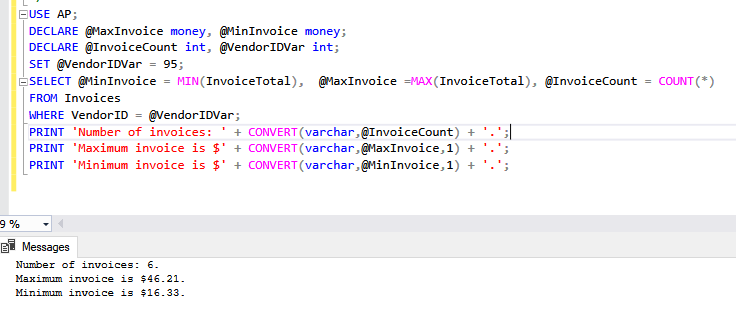

6. After you enter the print statements, run the code (your code and results should look like the example shown below):

scalar variable script showing printing

7. Comment out the code and save your changes

Scenario 3: The boss would like us to create a global temporary table that shows unpaid invoice information. The columns should be named Invoice#, Date, Total, and Balance. The data should be retrieved from the Invoices table using the InvoiceNumber, InvoiceDate, InvoiceTotal and InvoiceTotal-PaymentTotal-CreditTotal columns

1. There are 2 ways we can approach this problem: 1) We can create the table and use INSERT INTO statements similar to what we did when we created our final projects OR 2) We could use the INSERT INTO command and pull data from the Invoice table into our new table.

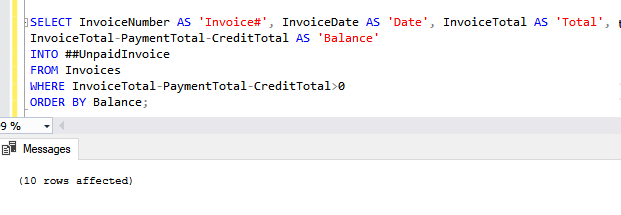

2. We are going to use method #2 since it is more in line with what our boss is asking us to do. This is very similar to what we did earlier in the semester, the only difference is the table is global and temporary rather than permanent

create global table

3. Comment out the code and enter the code below to view the data in the table:

SELECT * FROM ##UnpaidInvoice;

4. Comment out the code and save your changes.

Scenario 4: Our boss would like us to create a temporary table and run a select against it so they can see if it is something other departments are interested in.

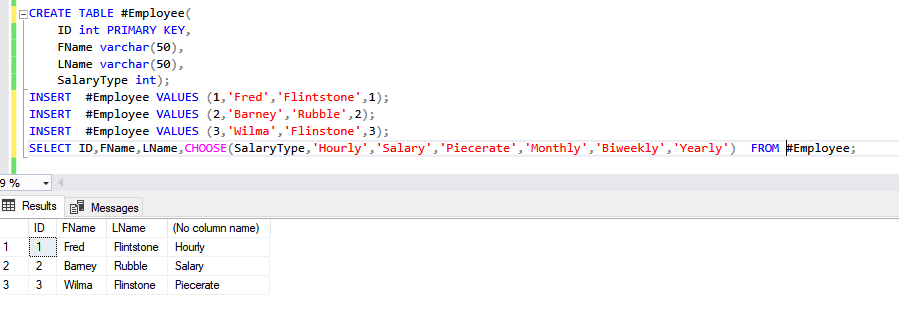

1. Enter the code shown below to create the temporary employee table, add records to the table and display data from the table:

temporary employee data and code to create

2. Comment out the code and save your changes.

Task #2 - Changing the flow of execution

Scenario 1: Our boss would like us to delete the table InvoiceCopy if it exists and they would also like us to delete the temp table ##customers if it exists

1. Enter the heading /* Task #2 */

2. We will use the IF statement to see if the objects exist and if they do exist, we will delete them

IF OBJECT_ID('InvoiceCopy') IS NOT NULL
DROP TABLE InvoiceCopy;

IF OBJECT_ID('tempdb..##customers') IS NOT NULL
DROP TABLE ##customers;

3. Save your changes and comment out the code

Scenario 2: Our boss would like us to display the OrderID, ProductID and Total Price (UnitPrice * Quantity) for Northwind data in the Order Details table. They would like to see the information for the 10 highest 'Total Price' orders.

1. There are a couple ways we could do this. We will first code it using a row cursor, while loop and if statement.

Here's what is going on in the code below:

@Counter is keeping track of the number of times we have processed the row cursor When we reach 10, the loop is exited, the row cursor is closed and resources for the cursor are deallocated.

The row cursor is created using the following DECLARE and SELECT statements:

DECLARE rowCursor CURSOR FOR
    SELECT OrderID, ProductID, UnitPrice * Quantity AS 'Total Price'
    FROM [Order Details]
    WHERE UnitPrice * Quantity >100
    ORDER BY 'Total Price' DESC;

Once the cursor is created for a select, you need to open the cursor to use it.

FETCH NEXT FROM is used to retrieve rows

The while loop will process rows as long as @@FETCH_STATUS is zero which means it was successful

The IF statement is being used to break out of the loop when the counter reaches 10

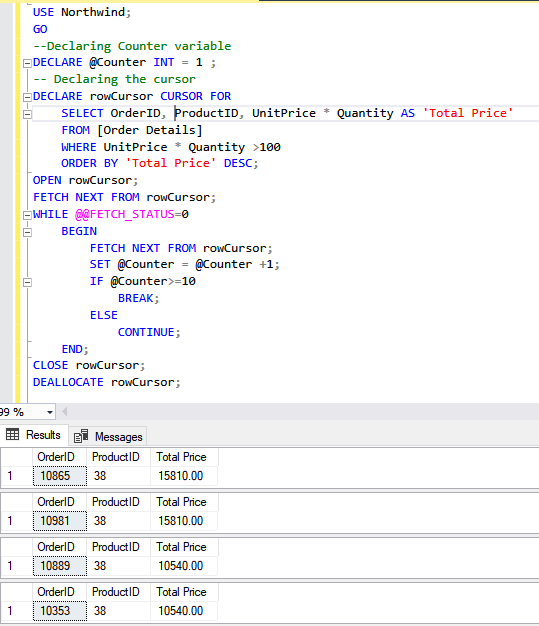

using fetch and row cursors

NOTE: THe results are only a partial set of results (you will have 10 rows)

2. Execute the query and comment out the code

Scenario 3: Our boss would like us to create a script to backup the master database files. We will place the files into a temp folder that should be on the C drive. Before running the code, check the C drive to make sure there is a folder called temp and if there isn't, create the folder.

1. The query we will create is going to use the list of system databases and the name property to create the backups. To see the listing before we create the query, execute the query shown below:

SELECT * FROM MASTER.dbo.sysdatabases;

You should notice that the name column includes names of all databases in our system. We will be using values in that column to create backups.

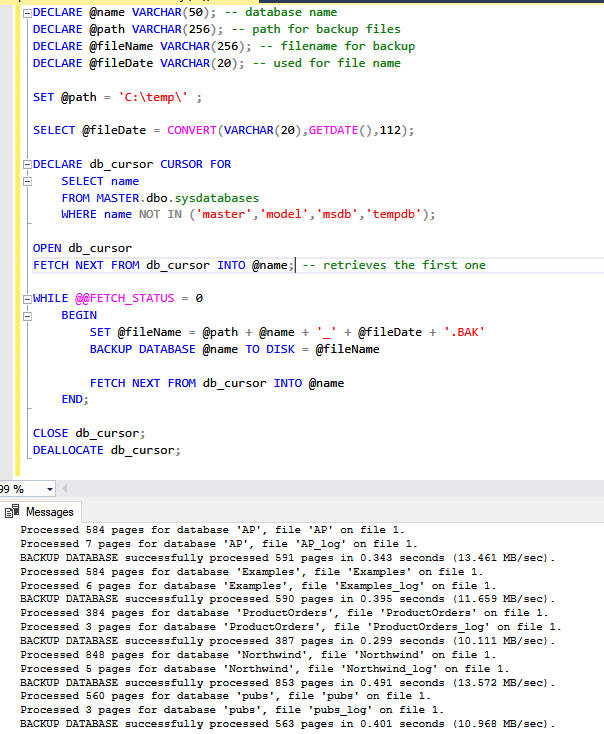

2. Create the query shown below (make sure the C drive has a temp folder) The output shown is a partial display of what you should see. Keep in mind this command will take a while to complete.

backup commands and partial output

Here’s a summary of what the statements do:

• DECLARE statements - Declare variables used in the code block

• SET\SELECT statements - Initialize the variables to a specific value

• DECLARE CURSOR statement - Populate the cursor with values that will be evaluated

o NOTE - There are an equal number of variables in the DECLARE CURSOR FOR statement as there are in the SELECT statement. This could be 1 or many variables and associated columns.

• OPEN statement - Open the cursor to begin data processing

• FETCH NEXT statements - Assign the specific values from the cursor to the variables

o NOTE - This logic is used for the initial population before the WHILE statement and then again during each loop in the process as a portion of the WHILE statement

• WHILE statement - Condition to begin and continue data processing

• BEGIN...END statement - Start and end of the code block

o NOTE - Based on the data processing multiple BEGIN...END statements can be used

• Data processing - In this example, this logic is to backup a database to a specific path and file name, but this could be just about any DML or administrative logic

• CLOSE statement - Releases the current data and associated locks, but permits the cursor to be re-opened

• DEALLOCATE statement - Destroys the cursor

3. Save your changes and comment out the code

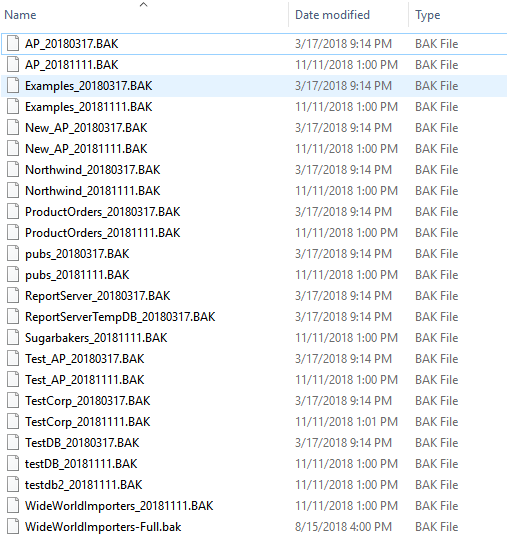

4. If you open the temp folder on your system, you should see each database that is in the SSMS listed with a .BAK extension

Example of what you should see in C:\temp

Task #3 - Using Try... Catch blocks

Scenario 1: Our boss wants us to enter a couple of records into the Invoices table. We don’t want a failure in one entry to halt or stop the entry of other records. To handle this, we are going to put each INSERT statement into its own TRY…CATCH block. That way, if there is an error in one statement, the others will still run

1. Enter the following code:

USE AP;
BEGIN TRY
    INSERT Invoices VALUES (799, 'ZXK-799', '2020-05-07', 299.95, 0, 0, 1, '2020-06-06', NULL);
    PRINT 'SUCCESS: Record was inserted.';
END TRY
BEGIN CATCH
    PRINT 'FAILURE: Record was not inserted.'; PRINT 'Error ' + CONVERT(varchar, ERROR_NUMBER(), 1) + ': ' + ERROR_MESSAGE();
END CATCH;
BEGIN TRY
    INSERT Invoices VALUES(122,'abc-123','2020-02-02',599.99,0,200,2,'2020-03-02',NULL);
    PRINT 'SUCCESS: Record was inserted.';
END TRY
BEGIN CATCH
    PRINT 'FAILURE: Record was not inserted.'; PRINT 'Error ' + CONVERT(varchar, ERROR_NUMBER(), 1) + ': ' + ERROR_MESSAGE();
END CATCH;

2. Execute the query. In the messages you should notice the first INSERT generated an error, but the second one ran without any problems. Try... Catch allowed the second invoice to process even though the first had an error.

3 Comment out the code and save your changes.

Scenario 2: Due to a computer glitch, Invoice totals aren’t reflecting a 6% sales tax. We need to update all Invoice totals by adding 6% to them. Our boss would like us to do this in a temporary table and review the results.

1. Enter and execute the code below:

USE AP;
--Remove old InvoiceCopy table if one exists
BEGIN TRY
DROP TABLE #InvoiceCopy
END TRY
BEGIN CATCH
PRINT ' The table does not exist'
END CATCH

SELECT * INTO #InvoiceCopy FROM Invoices
DECLARE InvCursor CURSOR FOR SELECT * FROM #InvoiceCopy
OPEN InvCursor;
FETCH NEXT FROM InvCursor
WHILE @@FETCH_STATUS = 0
    BEGIN
        UPDATE #InvoiceCopy SET InvoiceTotal = InvoiceTotal + (InvoiceTotal * .06)
        PRINT 'Total has been updated'
        FETCH NEXT FROM InvCursor
    END
CLOSE InvCursor
DEALLOCATE InvCursor;

2. Save your changes and comment out the code. Look at the results and messages to see how the data was processed.

Task #4: Using System Functions

Scenario 1: Our boss would like us to modify the last query and add a rowcount to display a message if nothing was updated

1. Enter the heading /* Task #4 */

2. Copy/paste the last query and add @@ROWCOUNT with a print message as shown below:

USE AP;
--Remove old InvoiceCopy table if one exists
BEGIN TRY
DROP TABLE #InvoiceCopy
END TRY
BEGIN CATCH
PRINT ' The table does not exist'
END CATCH

NOTE: When the InvCursor runs out of rows to process, @@ROWCOUNT will be zero, so in the messages, you should see that the total has been updated and at the end, you should see the rowcount warning.

3. Save your changes and comment out the code.

Scenario 2: Our boss wants us to add records to the Vendors and Invoices table in the AP database using the rowcount and identity system functions

1. We can use the identity function for the Invoices table, but Vendors is set up a little differently and it won't work there (the vendorID will be automatically generated when the row is added)

USE AP;
DECLARE @MyIdentity int, @MyRowCount int;

INSERT Vendors (VendorName, VendorAddress1, VendorCity, VendorState, VendorZipCode, VendorPhone, DefaultTermsID, DefaultAccountNo)
VALUES ('Peerless Binding', '1112 S Windsor St', 'Hallowell', 'ME', '04347', '(207) 555-1555', 4, 400);

SET @MyIdentity = @@IDENTITY;
SET @MyRowCount = @@ROWCOUNT;
IF @MyRowCount = 1
INSERT Invoices VALUES (@MyIdentity, 'BA-0199', '2020-05-01', 4598.23, 0, 0, 4, '2020-06-30', NULL);
ELSE
PRINT 'The row was not inserted into Invoices';

2. Save your changes

3. Close the file and upload it to the dropbox in Moodle.
